Secure Sockets Layer 2.0

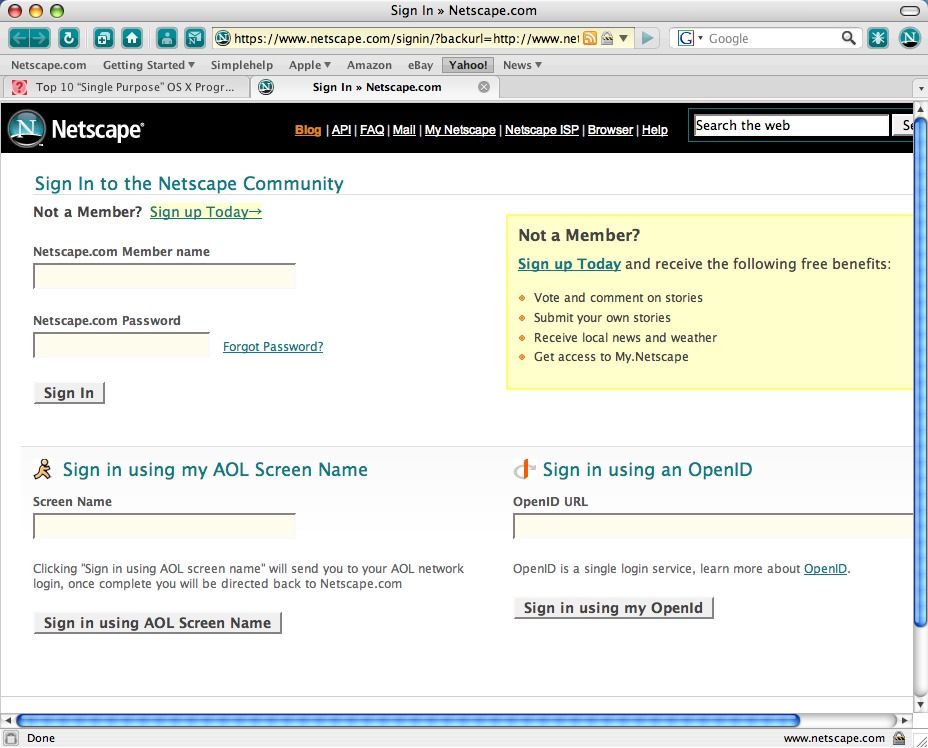

• In 1995, Netscape released Netscape Navigator 1.1
• First browser with support for secure HTTP
• https://www.netscape.com/ 🔒

Secure Sockets Layer 3.0 &

Private Communications Technology 1.0

• Fixed a lot of security shortfalls in SSL 2.0
• Microsoft’s PCT was only supported by Internet Explorer

Transport Layer Security 1.0

• Fixed some bugs, but is the same thing as SSL 3.0
• ProtocolVersion is { 3 , 1 }
• Netscape and Microsoft IETF standardization
• Name changed to Transport Layer Security as part of negotiations

Transport Layer Security 1.2

• Further cleanup and bug fixes
• Added a lot of flexibility via TLS Extensions
• Added support for Advanced Encryption Standard (AES) cipher and AEADs

Authenticated Encryption with Associated Data (AEAD)

• Combining a cipher, block mode, and message authentication code (MACs) was really hard

• AEADs combine all three into a single unit
• Most common are AES-GCM (AES in Galois/Counter mode) and ChaCha20-Poly1305

Transport Layer Security

• Overall, individual differences from SSL 3.0 to TLS 1.2 are minor
• Fix a pile of bugs and considerably clean things up
• Add a lot of flexibility to the protocol

Transport Layer Security 1.3

• Further removed a lot of cruft (MD5, RC4, SSL fallbacks, weak elliptic curves)
• Requires AEADs and more secure forms of handshakes
• Much faster handshakes, with fewer round trips

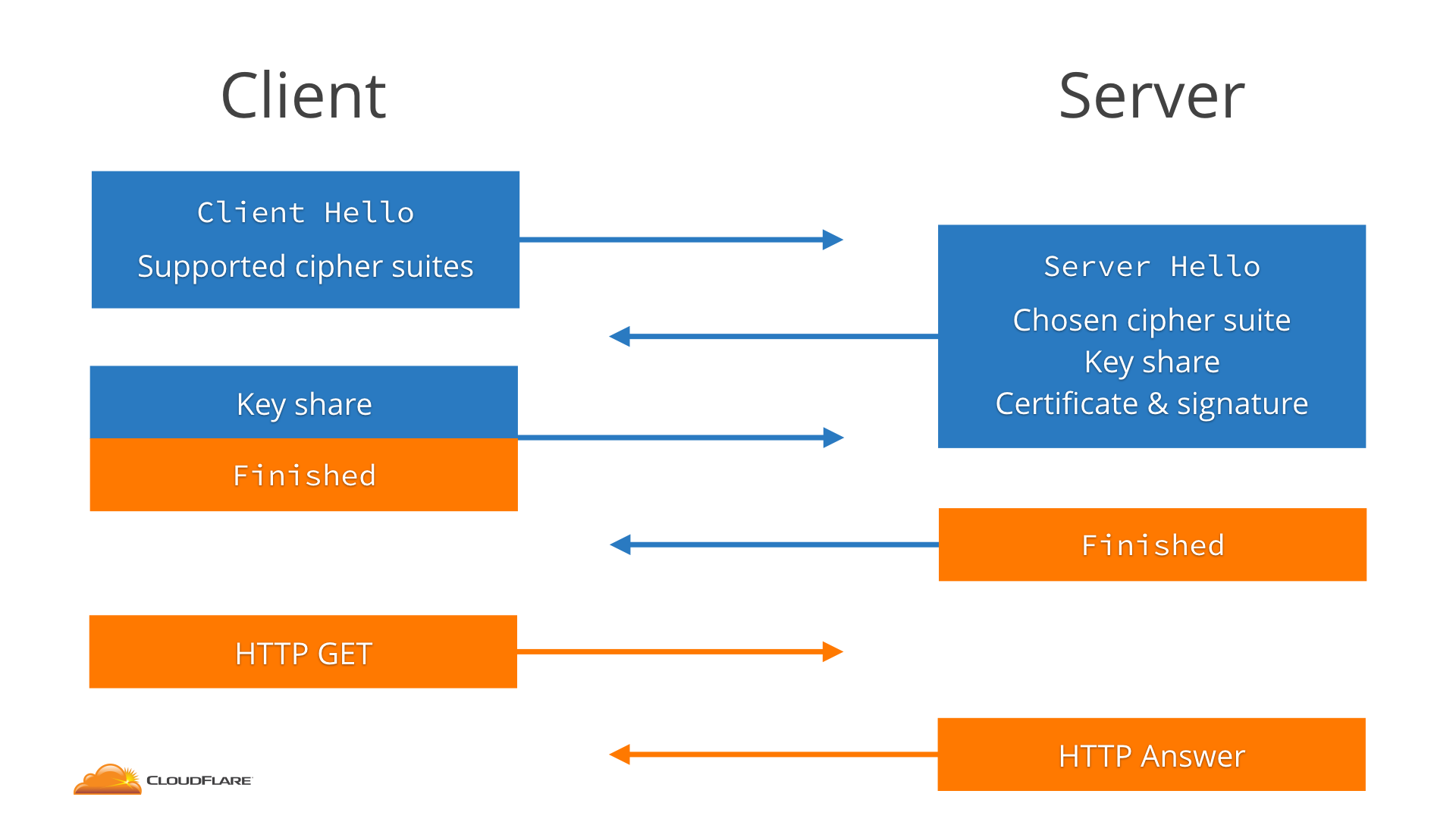

Transport Layer Security 1.2 handshake

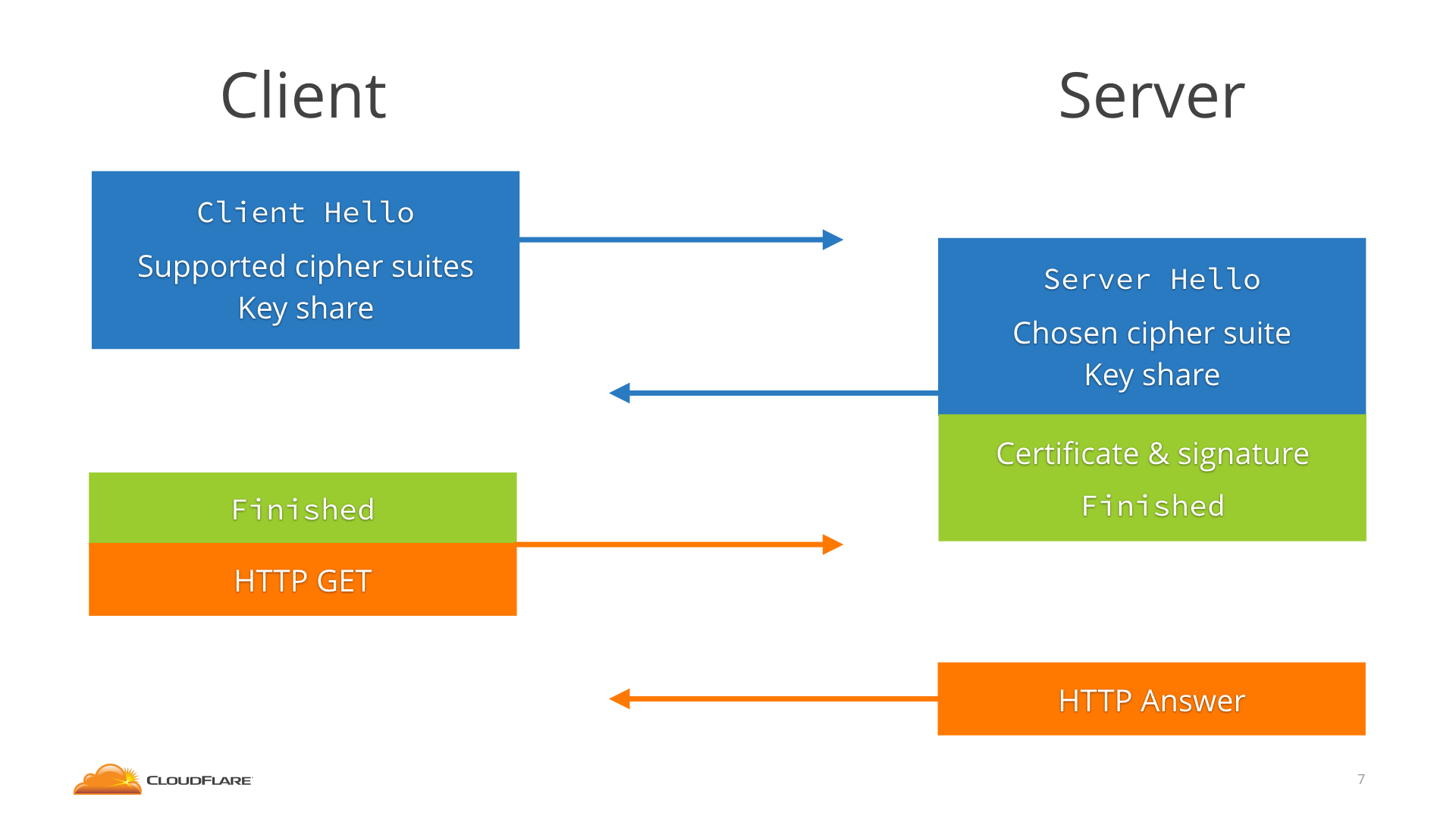

Transport Layer Security 1.3 handshake

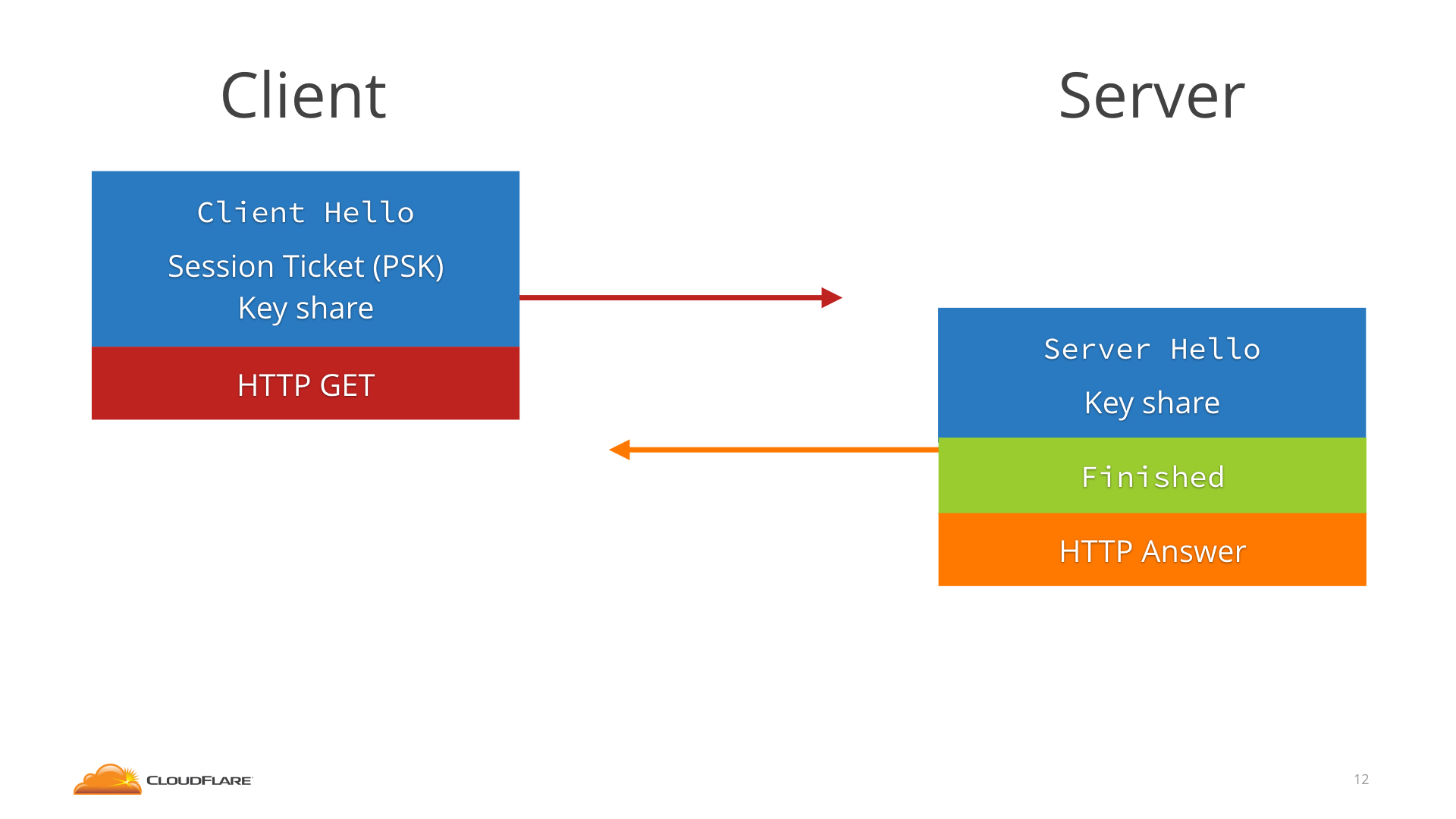

Transport Layer Security 1.3 handshake resumption

Transport Layer Security 1.3

• Available in Firefox 63, Chrome 70

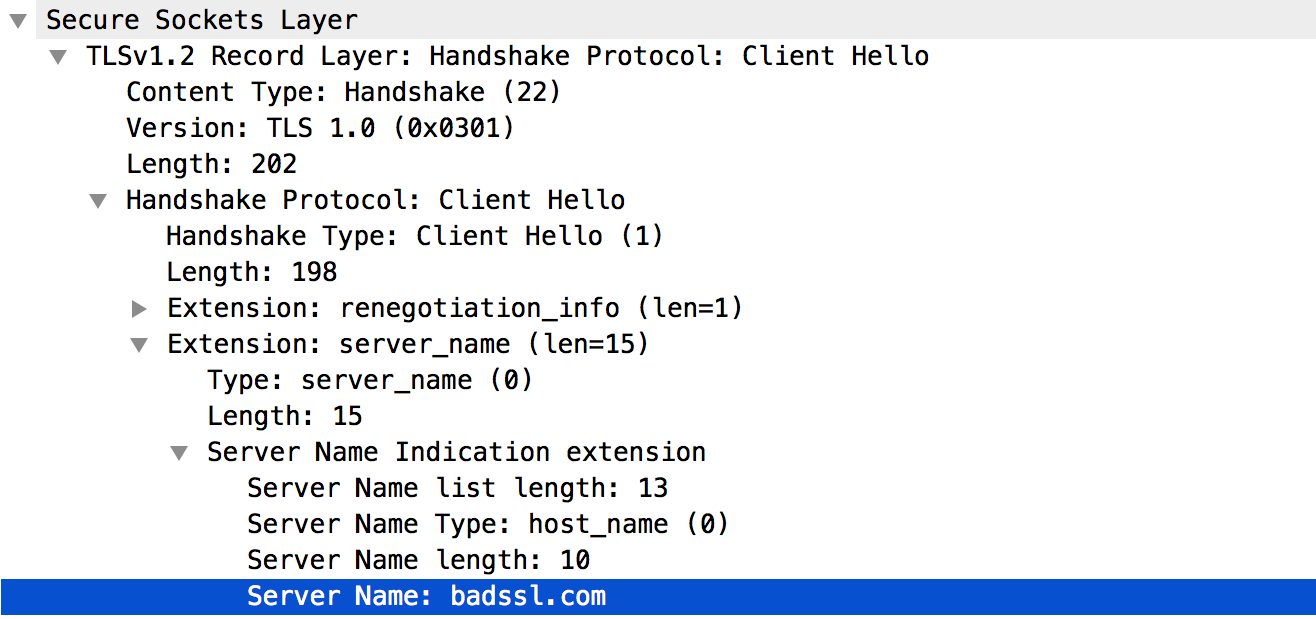

Server Name Indication (SNI)

• Early versions of SSL and TLS only supported one certificate per IP address
• Didn't match up well with the realities of web hosting
• Let clients tell servers which host they wanted to connect to
• Downsides of letting eavesdroppers know which domain you're connecting to

HTTP Strict Transport Security (HSTS)

• Tells your browser that you want to go to http://badssl.com/

HTTP Strict Transport Security (HSTS)

HTTP Strict Transport Security (HSTS)

HTTP Strict Transport Security (HSTS)

HTTP Strict Transport Security (HSTS)

HTTP Strict Transport Security (HSTS)

HTTP Strict Transport Security (HSTS)

HTTP Strict Transport Security (HSTS)

HTTP Strict Transport Security (HSTS)

HTTP Strict Transport Security (HSTS)

HTTP Strict Transport Security (HSTS)

HTTP Strict Transport Security (HSTS)

• Lets servers tell browsers to always visit site over HTTPS for a period
• Doesn't solve first use problem

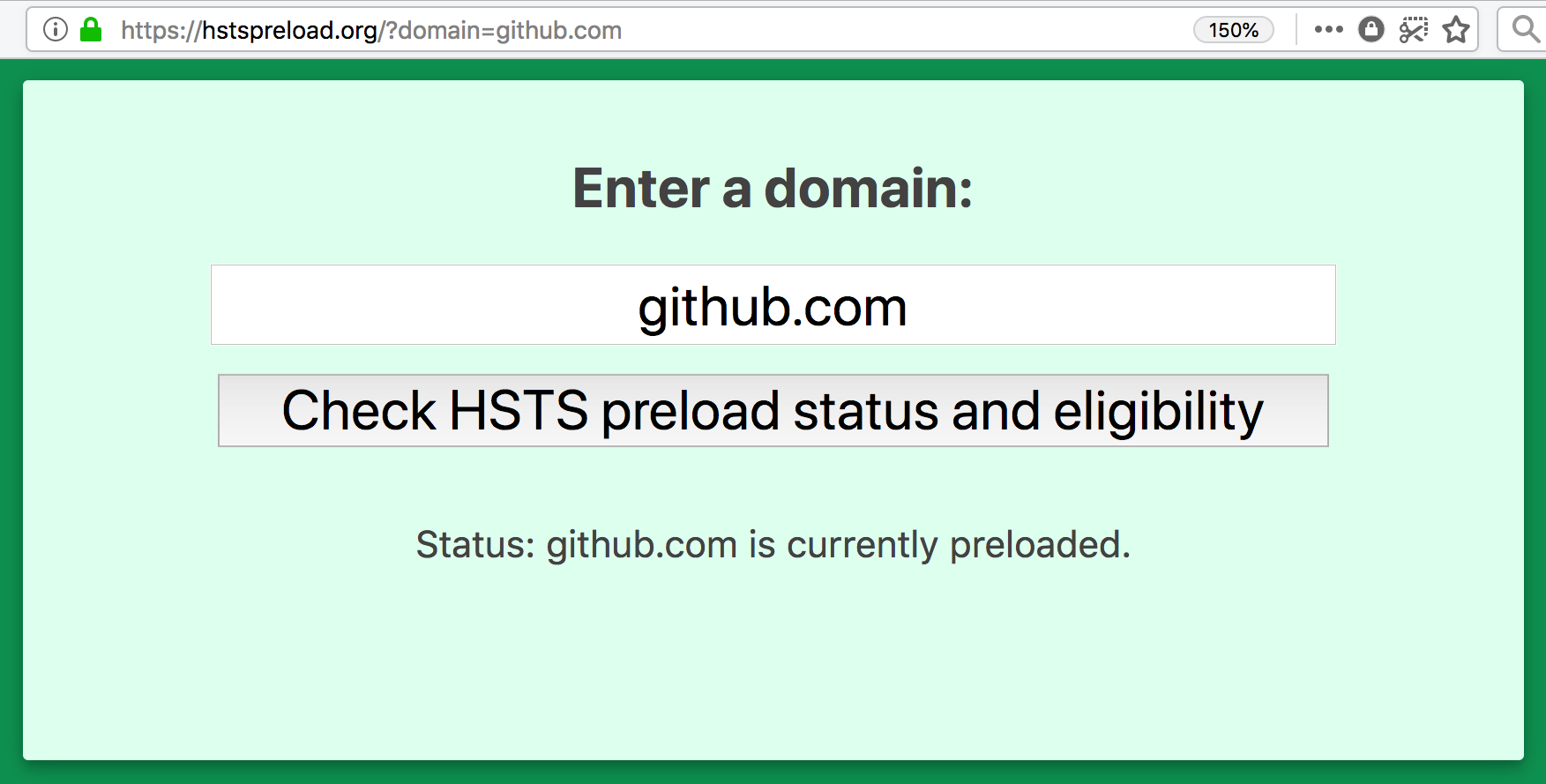

HSTS Preloading

• What if browsers came bundled with a giant list of sites that were only HTTPS?

Strict-Transport-Security: max-age=63072000; includeSubDomains; preload

• Applies to all subdomains
• Supported by every browser
• Takes a very long time to get off
• GIANT LIST OF SITES

HTTP Public Key Pinning (HPKP)

• Certificate authorities sometimes issue certificates that they shouldn't
• A way to pin sites to specific root certificate, intermediate certificate, or public keys
  • Maybe 100 sites will use this
  • It's super complicated and easy to screw up

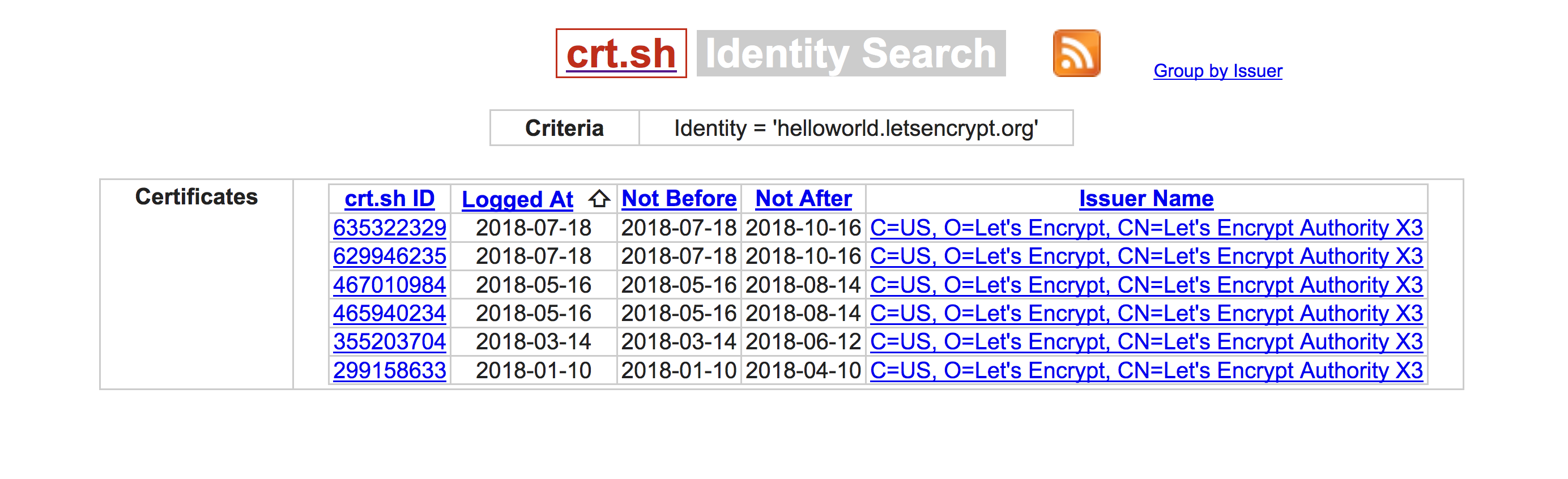

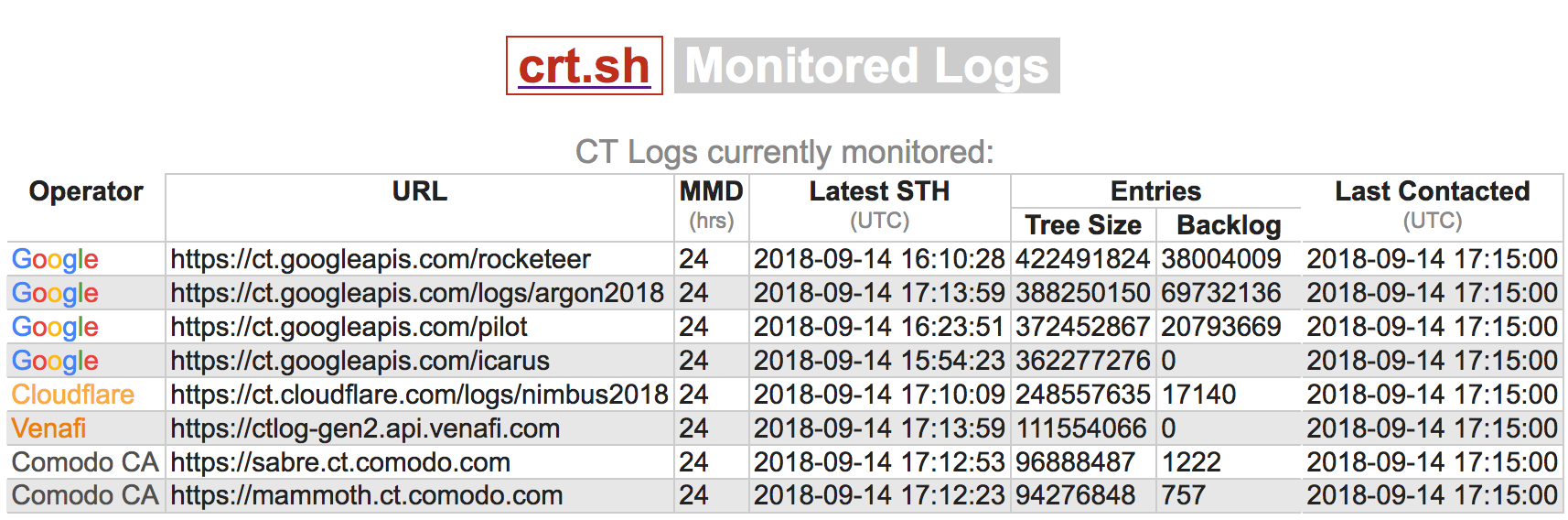

Certificate Transparency

• Append-only lists of certificates issued by certificate authorities
  • Check for issued certificates that you didn't request
  • Check to see if certificates encountered in the wild aren't in the logs
• Required for some types of certificates already, eventually all certificates

Digital Certificates

• Digital certificates are like a driver's license for a website
• They are required to setup secure websites
• The entities selling them want to make money
• And so digital certificates were expensive and complicated

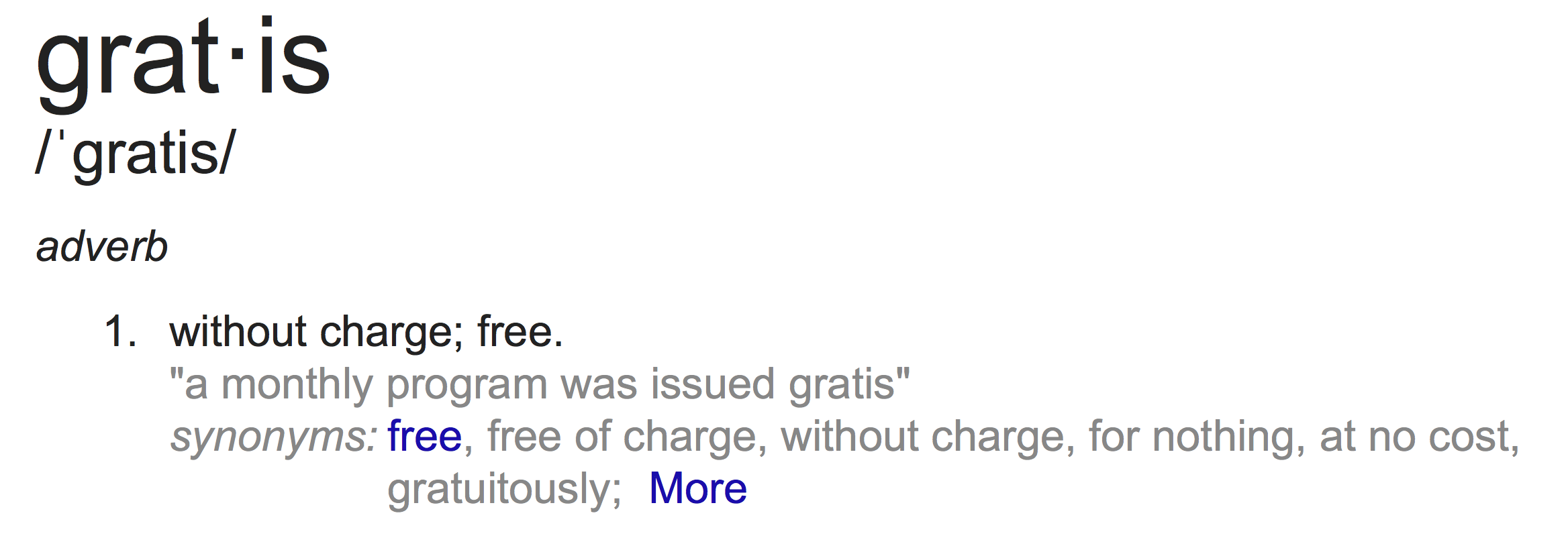

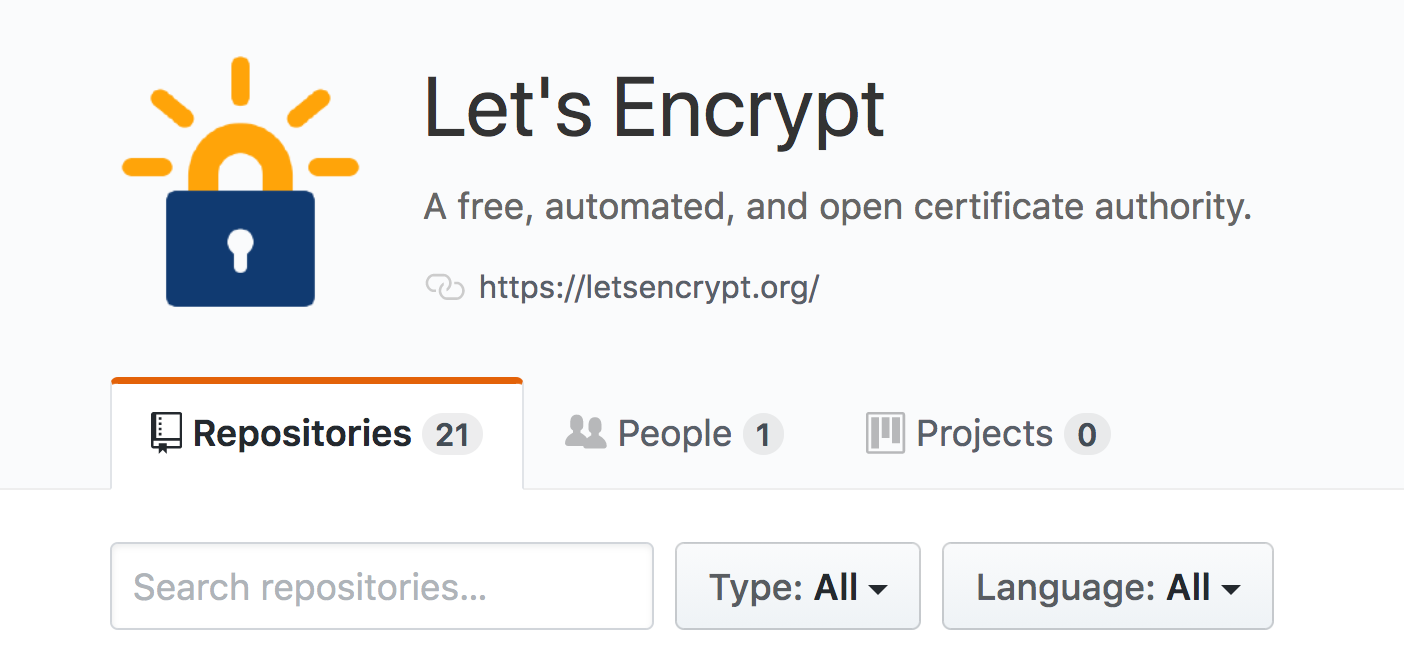

• Free

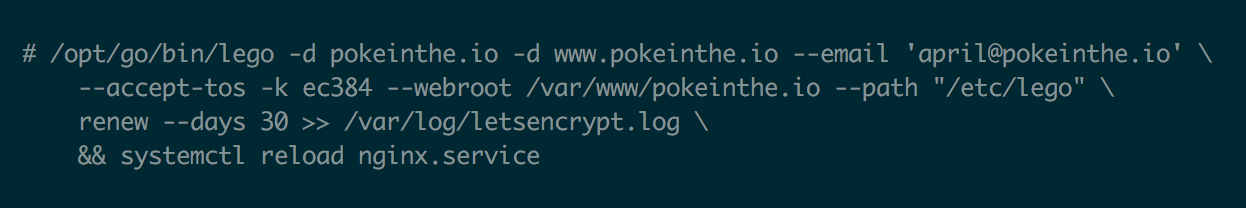

• Automated
• Transparent
• Open Source

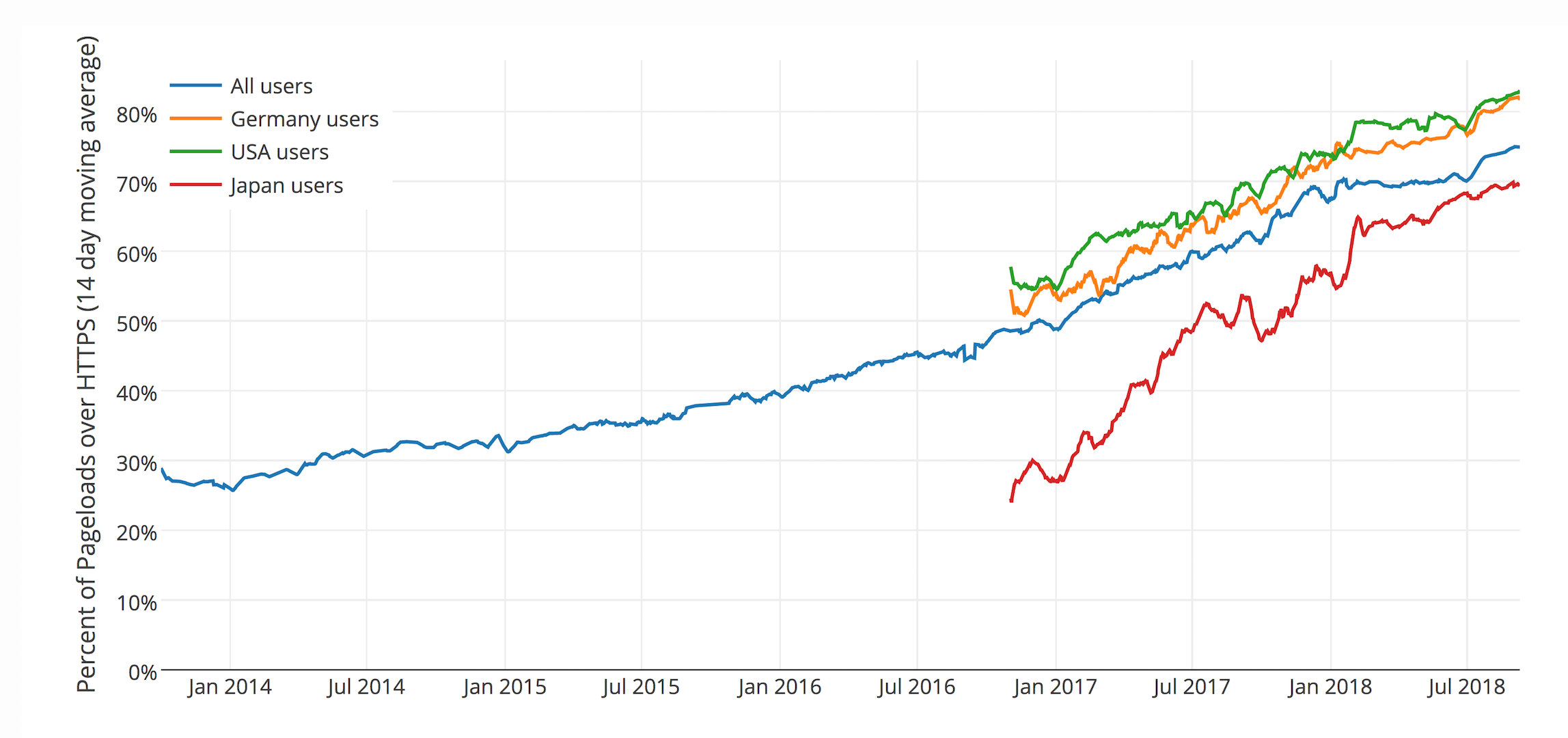

• Here’s where I show off a sweet chart about HTTPS usage
  (note to self: rewrite to something more professional before presentation)

Same-origin Policy

• Sites can execute code from any origin, but they can only directly read content from the same-origin.

• Running JavaScript, rendering images and fonts, loading a frame

• Reading the content of what they loaded

• Read the content of the same-origin, but nowhere else

Secure Cookies

Set-Cookie: SESSIONID=38afesc00c1e7a8; Domain=e-cookies.com

• Browser sends the SESSIONID cookie every time you visit e-cookies.com, even over HTTP

• This is very bad

Set-Cookie: SESSIONID=38afesc00c1e7a8; Domain=e-cookies.com; Secure

HttpOnly Cookies

• Browser makers understood that JavaScript came from all sorts of unscrupulous places

• HttpOnly flag prevents JavaScript code from accessing sensitive cookies

Set-Cookie: SESSIONID=38afesc00c1e7a8; Secure; HttpOnly

• You should use it
• Not nearly as important as preventing untrusted JavaScript from running

SameSite Cookies

• Super easy
• Save a ton of time
• You should use them
• But how????? And why????

Cross-site request forgeries (CSRF)

• Here is what I know
• There are three things people want in life

Cross-site request forgeries (CSRF)

• To do this, browsers must support <img> and <video> tags

<img src="https://bank.com/api/transfer?to=719091707&amount=5000">

• 🤔 🤔 🤔 🤔 🤔 🤔 🤔 🤔 🤔 🤔 🤔 🤔 🤔
• Browsers: 👍
• How do you tell an authentic request from a forgery?
  • They both have session cookies

Cross-site request forgeries (CSRF)

• Synchronizer tokens

<input type="hidden" name="anticsrftoken" value="XQGwbxfChfoEv4nFJQEHVeDsd">

• • Protected by same-origin policy
  • They need to be unique and unpredictable, only work with POST requests
  • Can cause problems with multiple tabs and erratic user flows

• Cookie-to-header tokens

Set-Cookie: anti-csrf-token=XQGwbxfChfoEv4nFJQEHVeDsd; HttpOnly

X-Anti-CSRF-Token: XQGwbxfChfoEv4nFJQEHVesd

• • Also protected by same-origin policy
  • Must be unpredictable, stable across entire session
  • Only works if JavaScript is enabled

SameSite Cookies

Set-Cookie: SESSIONID=XQGwbxfChfoEv4nFJQEHVeDsd; Secure; HttpOnly; SameSite

• SameSite tells browsers to only ever send the cookie when you're on a site
• SameSite=Strict (default) won't send the cookies even on navigation

<a href="https://bank.com/api/transfer?to=719091707&amount=5000">click me</a>

• SameSite=Lax will let browsers send cookies on top-level navigations
  • Protects unsafe methods (like POST)

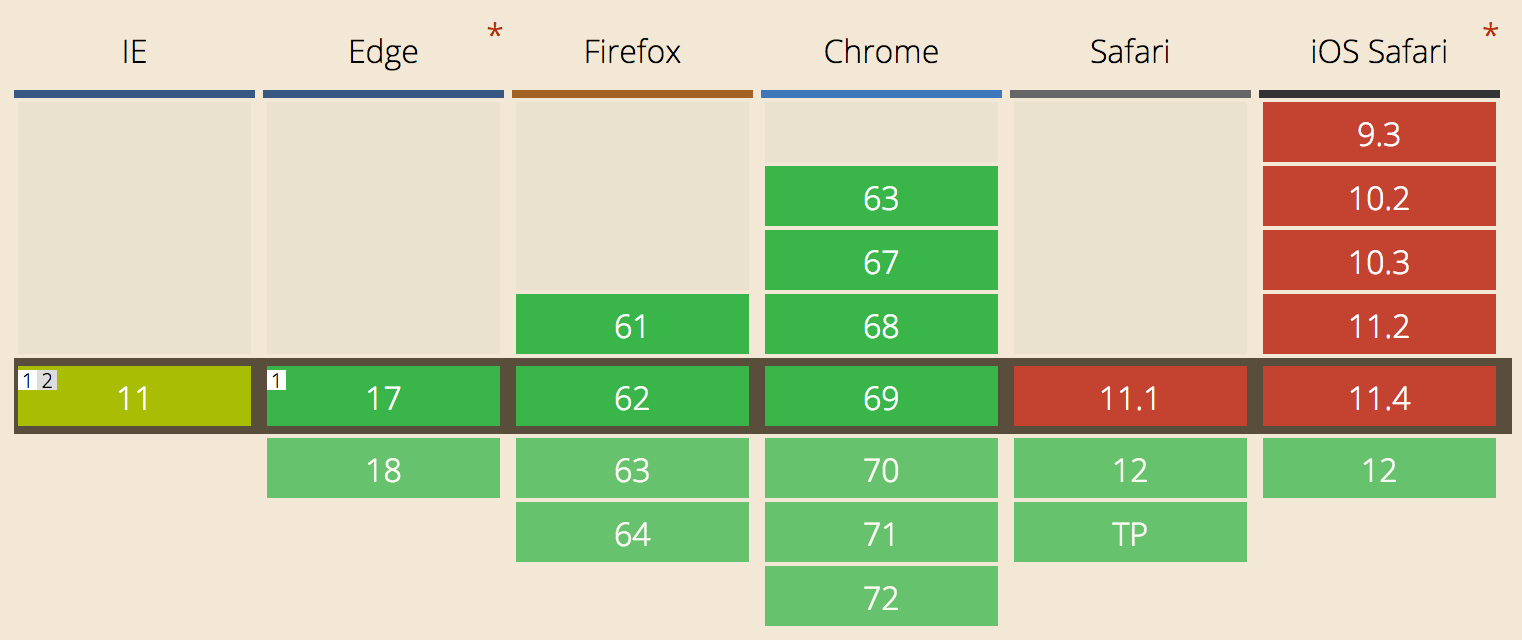

• Only supported by modern web browsers, so use in conjunction with other anti-CSRF methods for now

Cookie Prefixes

• Quite a number of attacks have come from leveraging an insecure site to attack a secure one
• Sites can set cookies on any parent domain

Set-Cookie: nickname=I'm a big poopy head; Domain=bank.com

Cookie Prefixes

Set-Cookie: __Secure-nickname=April; Secure; Domain=bank.com

• Prevent cookie from being set or overwritten by HTTP origins

Set-Cookie: __Host-nickname=April; Secure; Domain=bank.com; Path=/

• Prevent cookie from being set or overwritten by either HTTP origins or other systems.

X marks the spot

• Internet Explorer 8 introduced a trio of security headers

X-Frame-Options

• Tells browsers whether or not your site could be framed or iframed
  • X-Frame-Options: DENY
  • X-Frame-Options: SAMEORIGIN
  • X-Frame-Options: ALLOW-FROM https://mozilla.org/^†

^† Poor browser support

Clickjacking

Clickjacking

X-Frame-Options

• Now deprecated by other, more flexible standards
• Can still use if you have old clients and mostly need DENY

X-Content-Type-Options

• Protects against MIME type confusion attacks

GIF89a/*0;*/=0;
<!DOCTYPE html>
<html lang="en">
  <head>
    <meta charset="utf-8">
  </head>
  <body>
    <script>doEvil();</script>
  </body>
</html>


X-Content-Type-Options: nosniff

• Tells browsers to disable content sniffing

X-Content-Type-Options

• Helps stop attacks like Spectre and Meltdown

<img src="https://bank.com/api/getBalance">

          {
            "accountNumber": 719091707,
            "balance": 5000
          }

X-Content-Type-Options: nosniff

• Basically no downside, help enforce the proper behavior

X-XSS-Protection

Cross-site scripting (XSS)

Imagine a URL like this...

https://search.com?query=%22%3Eapril%3Cscript%3EdoEvil();%3C/script%3E

https://search.com?query=">april<script>doEvil();</script>

https://search.com?query=">april<script>doEvil();</script>

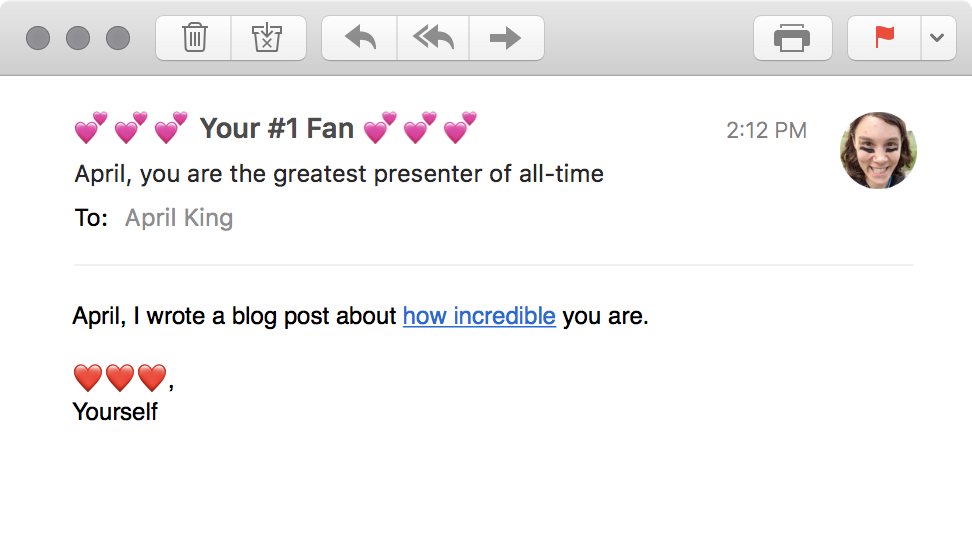

Now what if you took that link, and sent it in an email to someone super gullible?

Cross-site scripting (XSS) (Reflected)

I hope you're still remembering this URL…

https://search.com?query=">april<script>doEvil();</script>

Because it's going into this code:

            <input id="search"
                   value="<?pseudocode echo $_GET["query"] ?>"
            >


And what your browser will see (and execute) is this:

<input id="search"
       value="april"><script>doEvil();</script>">


Cross-site scripting (XSS) (Stored)

Please post nice things!tabs-forever-forum.com

Cross-site scripting (XSS) (Stored)

tabs-forever-forum.com

X-XSS-Protection

• Cross-site scripting attacks are an extremely common attack
• Have potential to be quite damaging

X-XSS-Protection: 1; block

• X-XSS-Protection detects reflected cross-site scripting attacks
• Behavior is not really defined anywhere, uneven browser support
• Don't expect miracles from it

The Fundamental Problem

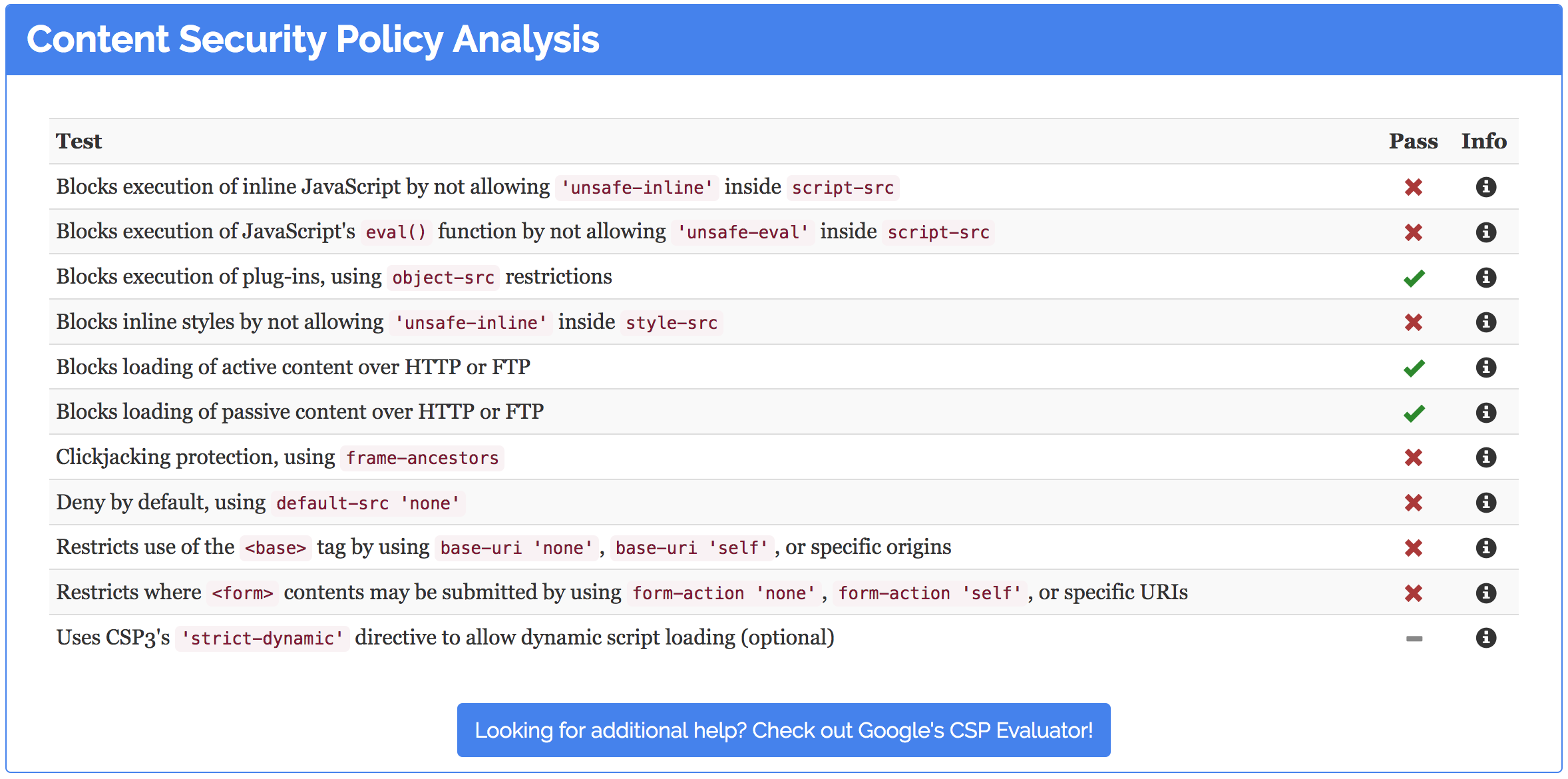

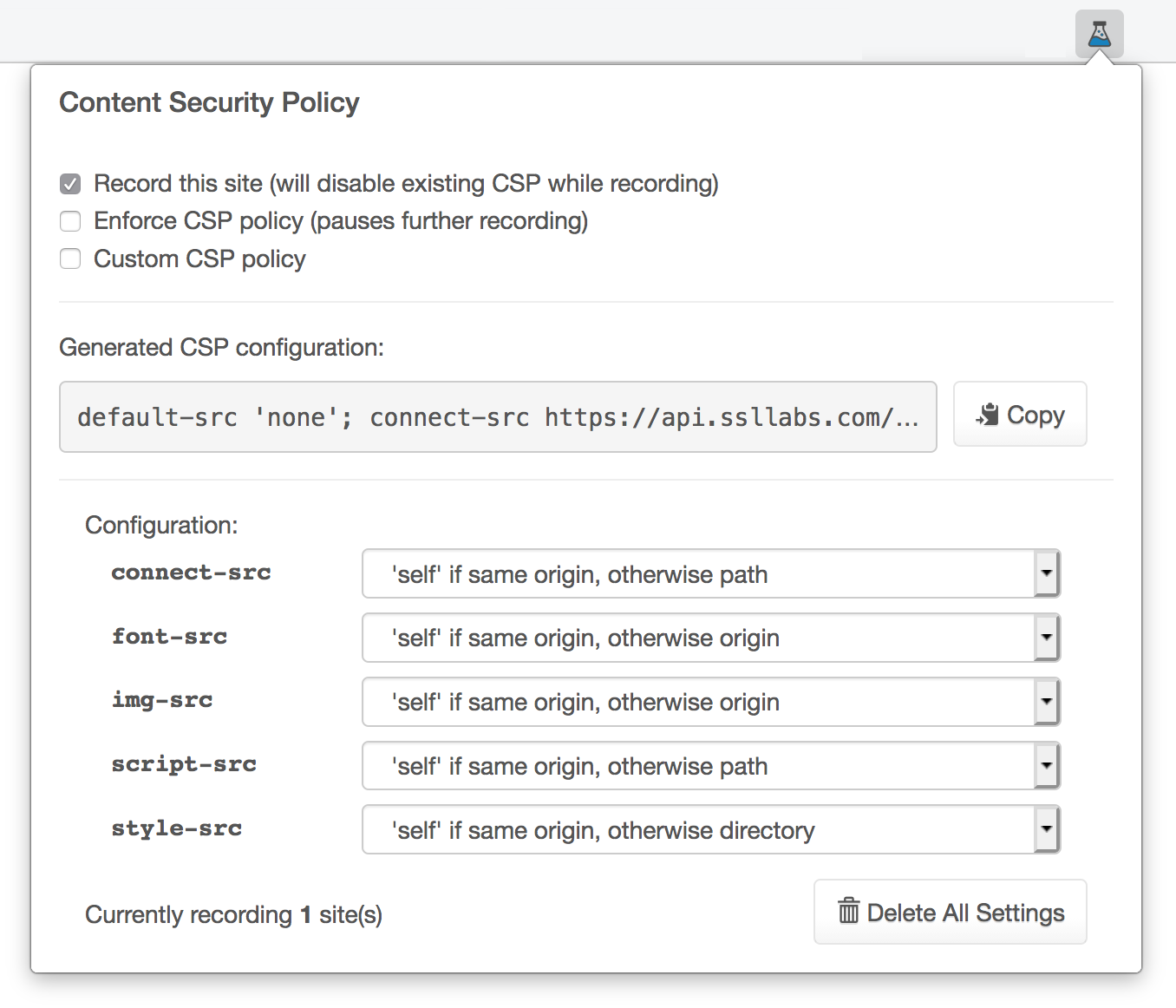

Content Security Policy

• Permission system for your web site
• Tells your browser things like:
  • Where can I load content from (scripts, images, etc.)
  • Who can I make XMLHttpRequest (XHR) connections to
  • Who can I be framed by, and who can I frame?
  • Can script that's been mixed with content be executed?

Content Security Policy

            Content-Security-Policy:
              default-src 'none';
              connect-src https://api.mozilla.com;
              font-src 'self' https://fonts.gstatic.com;
              form-action 'self';
              frame-ancestors 'none';
              img-src https://*.imgur.com;
              script-src 'self' https://jquery.com/3.3.1/jquery.min.js
              style-src 'self' 'unsafe-inline'


            Content-Security-Policy:
              default-src 'none';
              connect-src https://api.mozilla.com;
              font-src 'self' https://fonts.gstatic.com;
              form-action 'self';
              frame-ancestors 'none';
              img-src https://*.imgur.com;
              script-src 'self' https://jquery.com/3.3.1/jquery.min.js
              style-src 'self' 'unsafe-inline'


• Any source without a -src directive (e.g. audio and video) is denied access

            Content-Security-Policy:
              default-src 'none';
              connect-src https://api.mozilla.com;
              font-src 'self' https://fonts.gstatic.com;
              form-action 'self';
              frame-ancestors 'none';
              img-src https://*.imgur.com;
              script-src 'self' https://jquery.com/3.3.1/jquery.min.js
              style-src 'self' 'unsafe-inline'


• Can make XMLHttpRequests (XHR) to api.mozilla.com

            Content-Security-Policy:
              default-src 'none';
              connect-src https://api.mozilla.com;
              font-src 'self' https://fonts.gstatic.com;
              form-action 'self';
              frame-ancestors 'none';
              img-src https://*.imgur.com;
              script-src 'self' https://jquery.com/3.3.1/jquery.min.js
              style-src 'self' 'unsafe-inline'


• Can load fonts from the same origin and Google Fonts

            Content-Security-Policy:
              default-src 'none';
              connect-src https://api.mozilla.com;
              font-src 'self' https://fonts.gstatic.com;
              form-action 'self';
              frame-ancestors 'none';
              img-src https://*.imgur.com;
              script-src 'self' https://jquery.com/3.3.1/jquery.min.js
              style-src 'self' 'unsafe-inline'


• Forms can only be submitted to the same origin

            Content-Security-Policy:
              default-src 'none';
              connect-src https://api.mozilla.com;
              font-src 'self' https://fonts.gstatic.com;
              form-action 'self';
              frame-ancestors 'none';
              img-src https://*.imgur.com;
              script-src 'self' https://jquery.com/3.3.1/jquery.min.js
              style-src 'self' 'unsafe-inline'


• Nothing can frame this site, not even itself.
• Same as X-Frame-Options: DENY

            Content-Security-Policy:
              default-src 'none';
              connect-src https://api.mozilla.com;
              font-src 'self' https://fonts.gstatic.com;
              form-action 'self';
              frame-ancestors 'none';
              img-src https://*.imgur.com;
              script-src 'self' https://jquery.com/3.3.1/jquery.min.js
              style-src 'self' 'unsafe-inline'


• Can load images from any imgur.com subdomain

            Content-Security-Policy:
              default-src 'none';
              connect-src https://api.mozilla.com;
              font-src 'self' https://fonts.gstatic.com;
              form-action 'self';
              frame-ancestors 'none';
              img-src https://*.imgur.com;
              script-src 'self' https://jquery.com/3.3.1/jquery.min.js
              style-src 'self' 'unsafe-inline'


• Can load scripts from same origin and one specific jQuery script

            Content-Security-Policy:
              default-src 'none';
              connect-src https://api.mozilla.com;
              font-src 'self' https://fonts.gstatic.com;
              form-action 'self';
              frame-ancestors 'none';
              img-src https://*.imgur.com;
              script-src 'self' https://jquery.com/3.3.1/jquery.min.js
              style-src 'self' 'unsafe-inline'


• Can load stylesheets from same origin and allows (unsafe) style tags and style attributes on tags

            Content-Security-Policy:
              default-src 'none';
              connect-src https://api.mozilla.com;
              font-src 'self' https://fonts.gstatic.com;
              form-action 'self';
              frame-ancestors 'none';
              img-src https://*.imgur.com;
              script-src 'self' https://jquery.com/3.3.1/jquery.min.js
              style-src 'self' 'unsafe-inline'


• Can load stylesheets from same origin and allows (unsafe) style attributes on tags

Mozilla Laboratory Add-on

• Free add-on for Firefox that can generate a Content Security Policy
• Click around on things while it watches

Content Security Policy (is not easy)

• Strongly encourages separation of content, presentation, and code

            <div id="footer" onClick="doClick();" style="color: red;">
              Feet Are So Weird Like What's With Those Toes Anyways? — foot.com
            </div>
            <script>
              // do something
              doSomething();

              // oh yeah and do this too
              doSomethingElse();
            </script>
          </body>


            <div id="footer" onClick="doClick();" style="color: red;">
              Feet Are So Weird Like What's With Those Toes Anyways? — foot.com
            </div>
            <script>
              // do something
              doSomething();

              // oh yeah and do this too
              doSomethingElse();
            </script>
          </body>


            <div id="footer" onClick="doClick();" style="color: red;">
              Feet Are So Weird Like What's With Those Toes Anyways? — foot.com
            </div>
            <script>
              // do something
              doSomething();

              // oh yeah and do this too
              doSomethingElse();
            </script>
          </body>


            <div id="footer" onClick="doClick();" style="color: red;">
              Feet Are So Weird Like What's With Those Toes Anyways? — foot.com
            </div>
            <script>
              // do something
              doSomething();

              // oh yeah and do this too
              doSomethingElse();
            </script>
          </body>


            <div id="footer" onClick="doClick();" style="color: red;">
              Feet Are So Weird Like What's With Those Toes Anyways? — foot.com
            </div>
            <script>
              // do something
              doSomething();

              // oh yeah and do this too
              doSomethingElse();
            </script>
          </body>


            <div id="footer" onClick="doClick();" style="color: red;">
              Feet Are So Weird Like What's With Those Toes Anyways? — foot.com
            </div>
            <script>
              // do something
              doSomething();

              // oh yeah and do this too
              doSomethingElse();
            </script>
          </body>


• By default, CSP will block the execution of inline styles
• By default, CSP will block the execution of inline script
• You can disable this with the 'unsafe-inline' directive
• But this just opens you back up to injection attacks

Content Security Policy (inline stuff)

Content-Security-Policy: script-src 'nonce-XQGwbxfChfoEv4nFJQEHVeDsd''nonce-XQGwbxfChfoEv4nFJQEHVeDsd'

              </div>
              <script nonce="XQGwbxfChfoEv4nFJQEHVeDsd"nonce="XQGwbxfChfoEv4nFJQEHVeDsd">
                // do something
                doSomething();

                // oh yeah and do this too
                doSomethingElse();
              </script>
            </body>


• You set an unpredictible nonce in your Content Security Policy, and tag all trusted code with it

Content Security Policy (more inline stuff)

Content-Security-Policy:
  script-src 'sha256-b1cc7d04a1f9f15cfa63030866dd152a8618762912694d1''sha256-b1cc7d04a1f9f15cfa63030866dd152a8618762912694d1'

              </div>
              <script>
                // do something
                doSomething();

                // oh yeah and do this too
                doSomethingElse();

                // do something
                doSomething();

                // oh yeah and do this too
                doSomethingElse();
              </script>
            </body>


• You can generate cryptographic hashes of your inline script

Content Security Policy 3

• Complex websites had difficulty tracking what scripts they were using
• They were doing bad things like

  • script-src https://cdnjs.cloudflare.com

  • script-src https:

  • script-src 'unsafe-inline'

• Added support for script-src 'strict-dynamic'

Subresource Integrity

What does HTML this code do? What does HTML this code really do???

<script src="https://code.jquery.com/jquery-3.3.1.min.js">

• Make malicious XHR (XMLHttpRequests) requests
• Read all non-HttpOnly cookies
• Record every keystroke and form entry
• Abuse permissions to the camera, geolocation, etc.

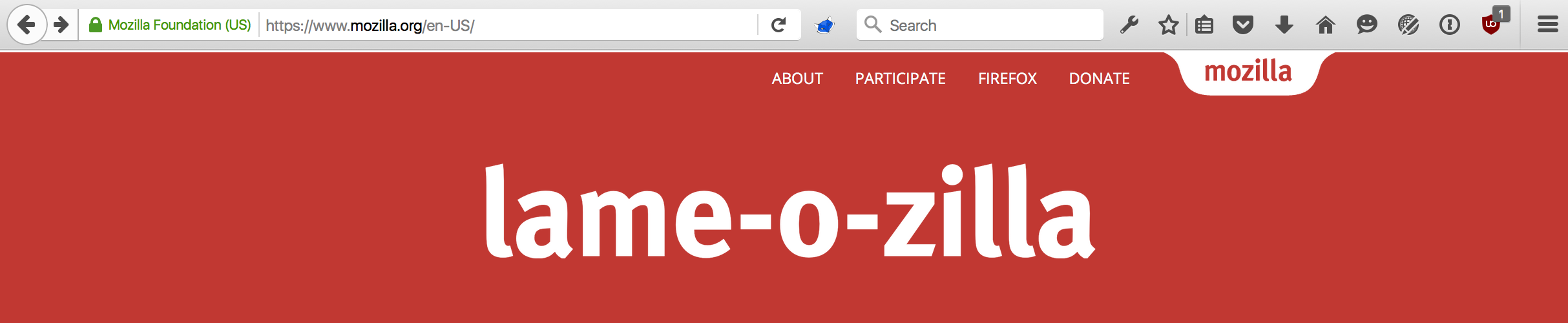

• It could even deface your website! 😀

Subresource Integrity

All you have to do is change your code to this:

<script src="https://code.jquery.com/jquery-3.3.1.min.js"
        crossorigin="anonymous">
        integrity="sha256-2Kok7MbOyxpgUVvAk/HJ2jigOSYS2auK4P="

• Browser will check to see if the JavaScript matches cryptographic hash prior to execution
• If somebody breaks in and changes the file, it won’t execute
• Good to have local fallback if loading fails

Referrer Policy

• Let's say you're on mozilla.org, and you see a piece of code like this…

<!-- load the greatest video of all time -->
<video>
  <source src="https://www.youtube.com/watch?v=dQw4w9WgXcQ">
</video>


• What kind of HTTP request does it send?

            GET /watch?v=dQw4w9WgXcQ HTTP/1.1
            Host: youtube.com
            User-Agent: Mozilla/5.0 Gecko/20100101 Firefox/63.0
            Accept: */*
            Connection: keep-alive
            Referer: https://mozilla.org/


            GET /watch?v=dQw4w9WgXcQ HTTP/1.1
            Host: youtube.com
            User-Agent: Mozilla/5.0 Gecko/20100101 Firefox/63.0
            Accept: */*
            Connection: keep-alive
            Referer: https://mozilla.org/


            GET /watch?v=dQw4w9WgXcQ HTTP/1.1
            Host: youtube.com
            User-Agent: Mozilla/5.0 Gecko/20100101 Firefox/63.0
            Accept: */*
            Connection: keep-alive
            Referer: https://mozilla.org/


            GET /watch?v=dQw4w9WgXcQ HTTP/1.1
            Host: youtube.com
            User-Agent: Mozilla/5.0 Gecko/20100101 Firefox/63.0
            Accept: */*
            Connection: keep-alive
            Referer: https://mozilla.org/


            GET /watch?v=dQw4w9WgXcQ HTTP/1.1
            Host: youtube.com
            User-Agent: Mozilla/5.0 Gecko/20100101 Firefox/63.0
            Accept: */*
            Connection: keep-alive

Referer: https://mozilla.org/


Referrer Policy

• Even worse, if you're at an unlisted page such as
  bank.com/pw-reset-cd39-e5a5-a891-b3f4,
  you might have something like this:

          <img src="https://some-cdn.com/bank/logo.jpg">


            GET /bank/logo.jpg HTTP/1.1
            Host: some-cdn.com
            User-Agent: Mozilla/5.0 Gecko/20100101 Firefox/63.0
            Accept: */*
            Connection: keep-alive
            Referer: https://bank.com/pw-reset-cd39-e5a5-a891-b3f4


Referrer Policy

Referrer Policy lets you restrict when and how the Referrer header is sent.

             Referrer-Policy: strict-origin-when-cross-origin


             Referer: https://bank.com


             Referrer-Policy: same-origin


Referrer Policy

• Considerable control over the Referrer header
• Huge win for user privacy
• Helps prevent accidental information disclosures
• Still lets you collect full referrer data for your own domains

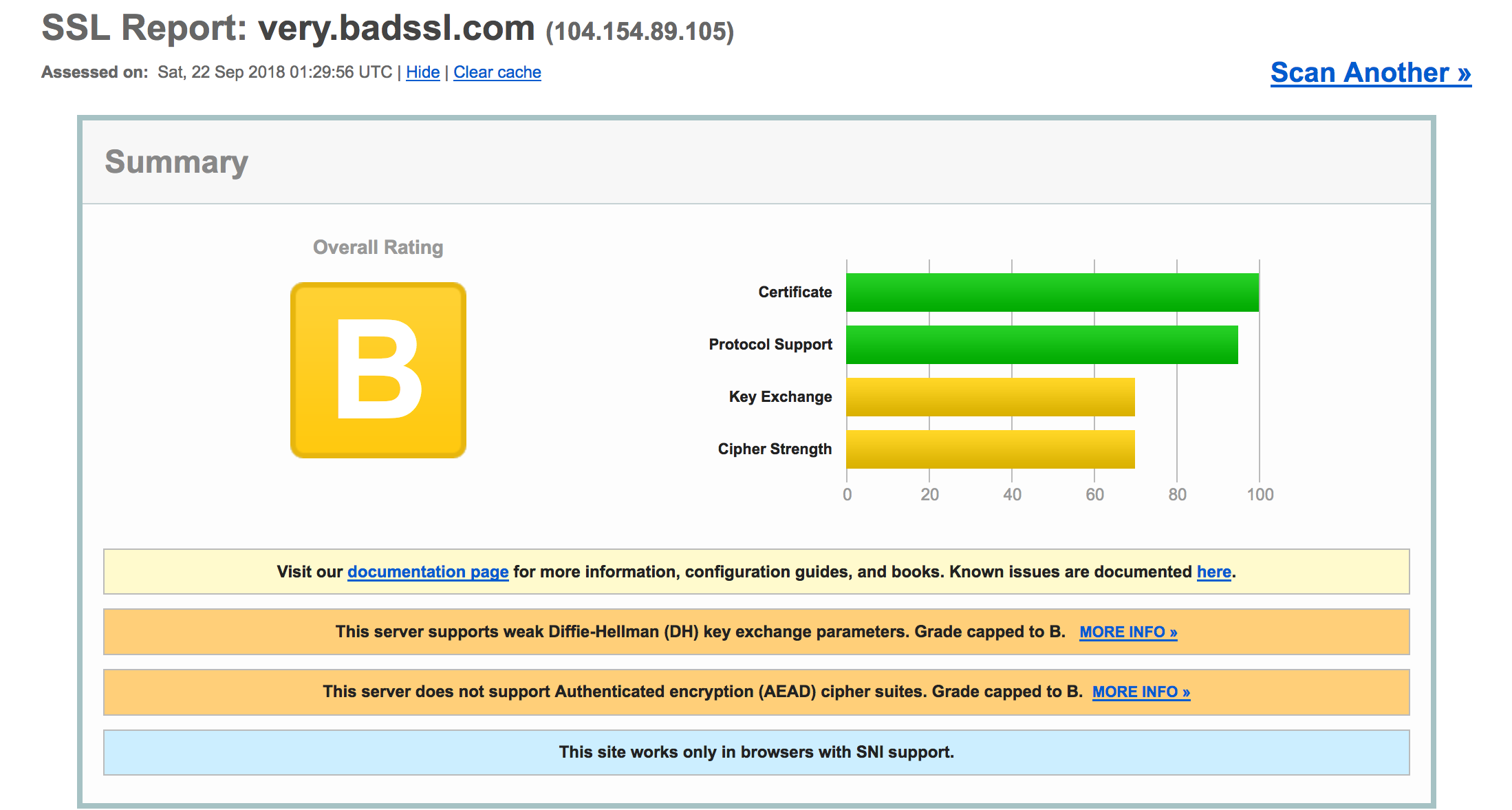

SSL Labs (Qualys)

• Configuring TLS cipher suites and protocols was really hard
• You had no feedback if you were doing it right (or wrong)
• Gave you a strict public letter grade

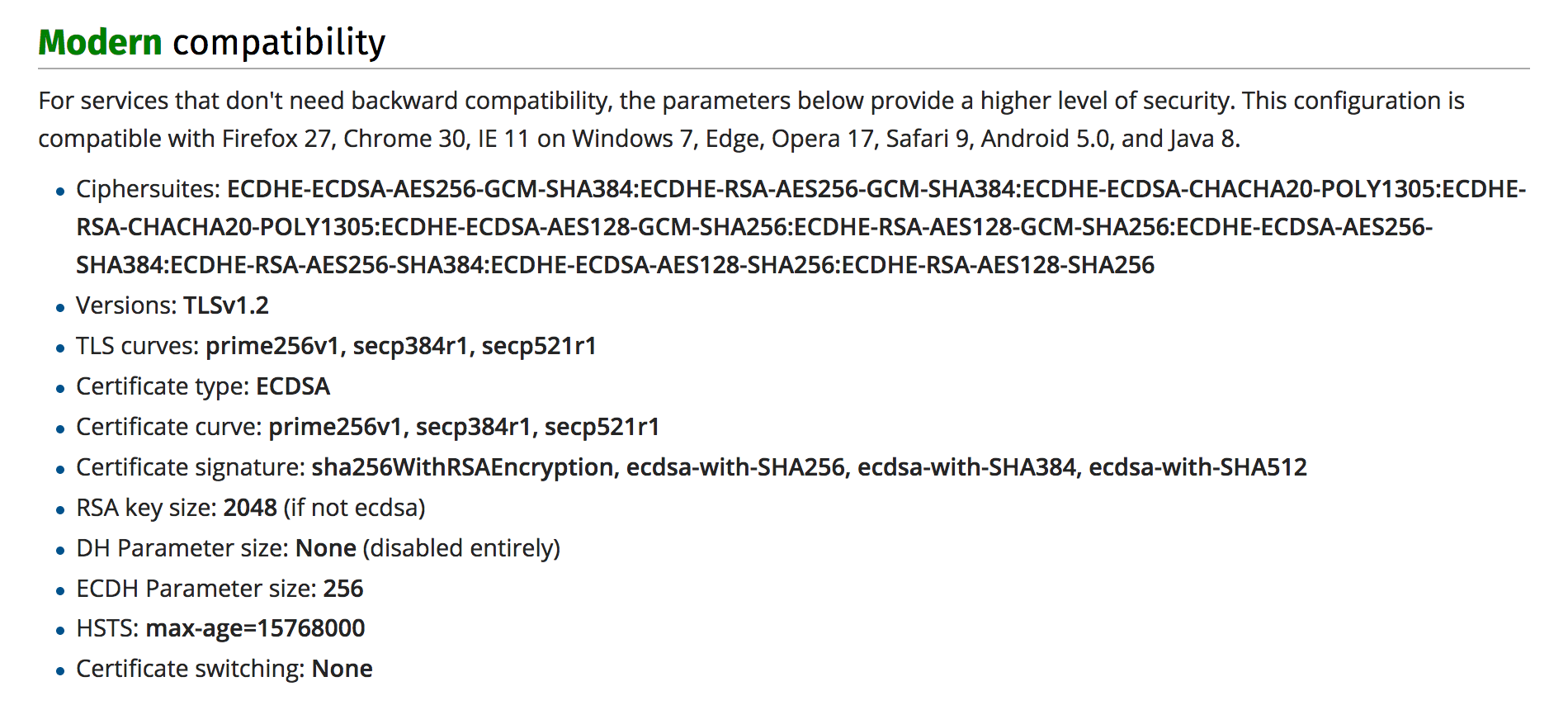

Mozilla Server Side TLS Guidelines

• Most frequently referenced TLS configurations
• Made it easy to get that A+ grade
• Configuration tool to generate easy copy-and-paste configurations

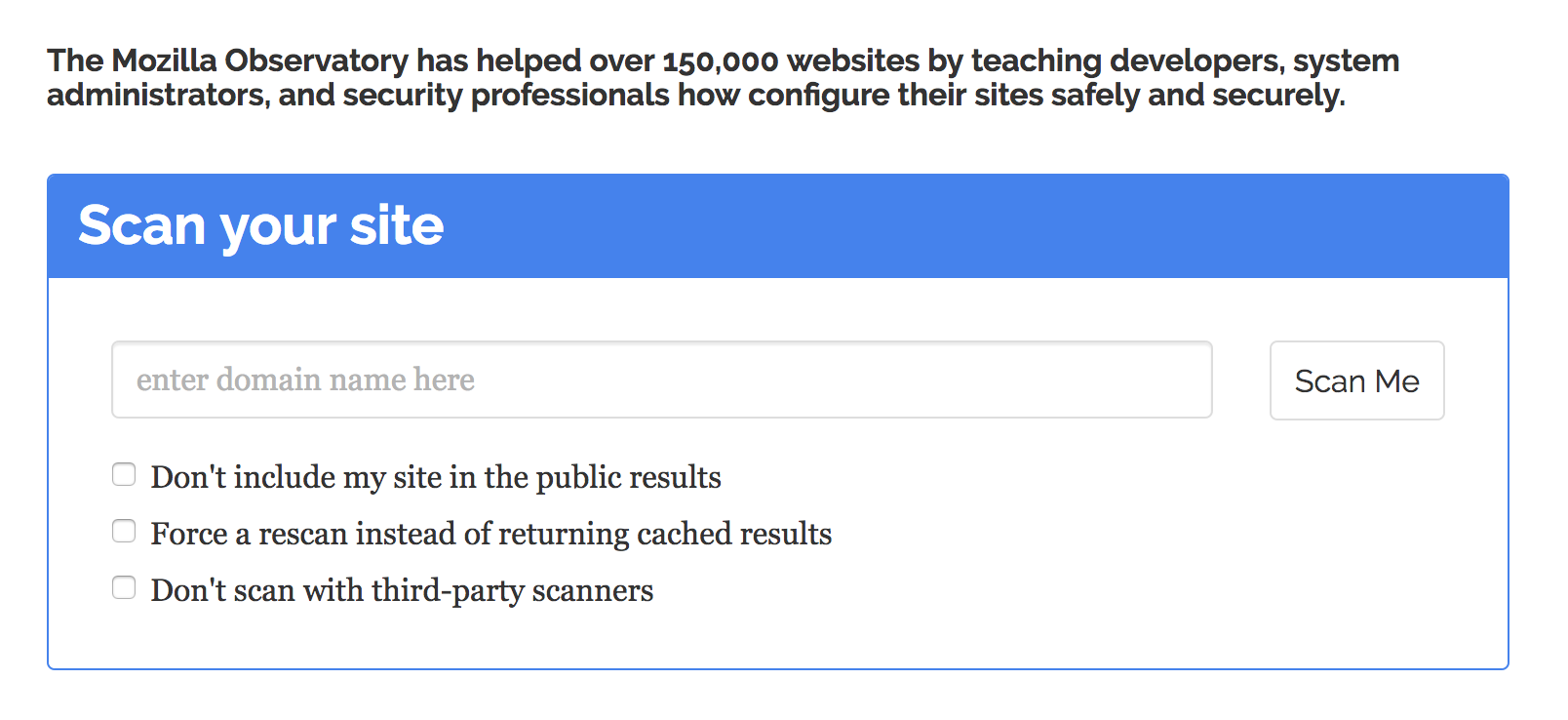

Mozilla Observatory

• As SSL Labs is for TLS, Mozilla Observatory is for front-end web security
• 100% free and open-source
• 8.5M scans across 2.5M domains

Mozilla Observatory

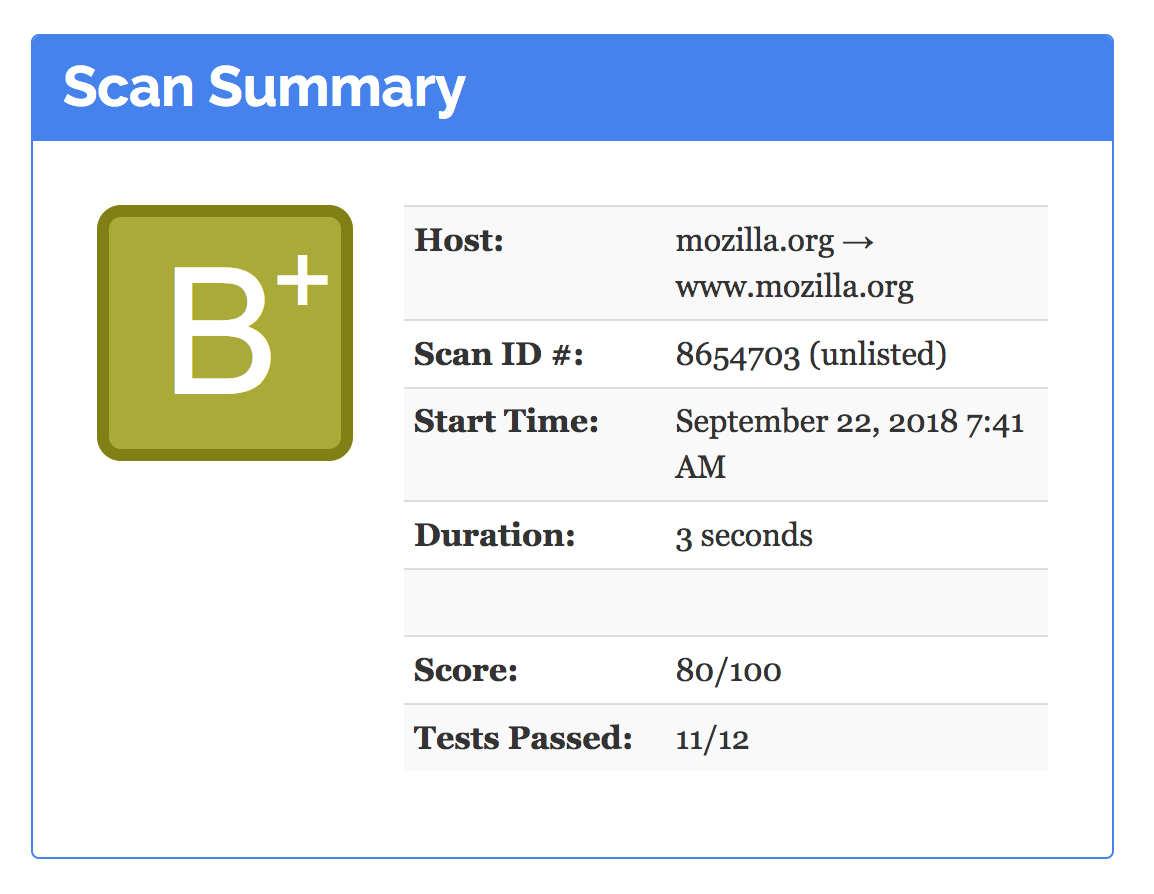

• Strict grading system – expect to fail the first time

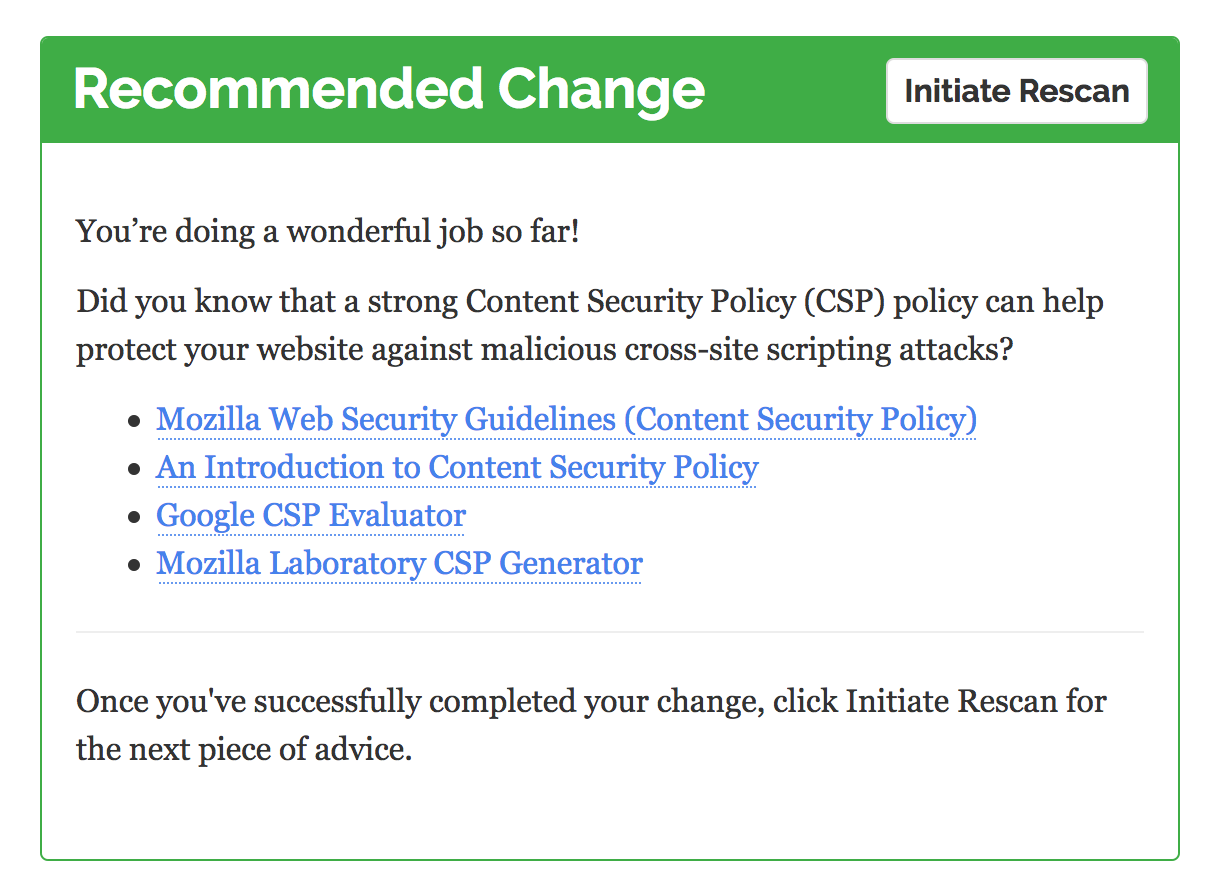

• Clear advice on what to do next, with links to documentation

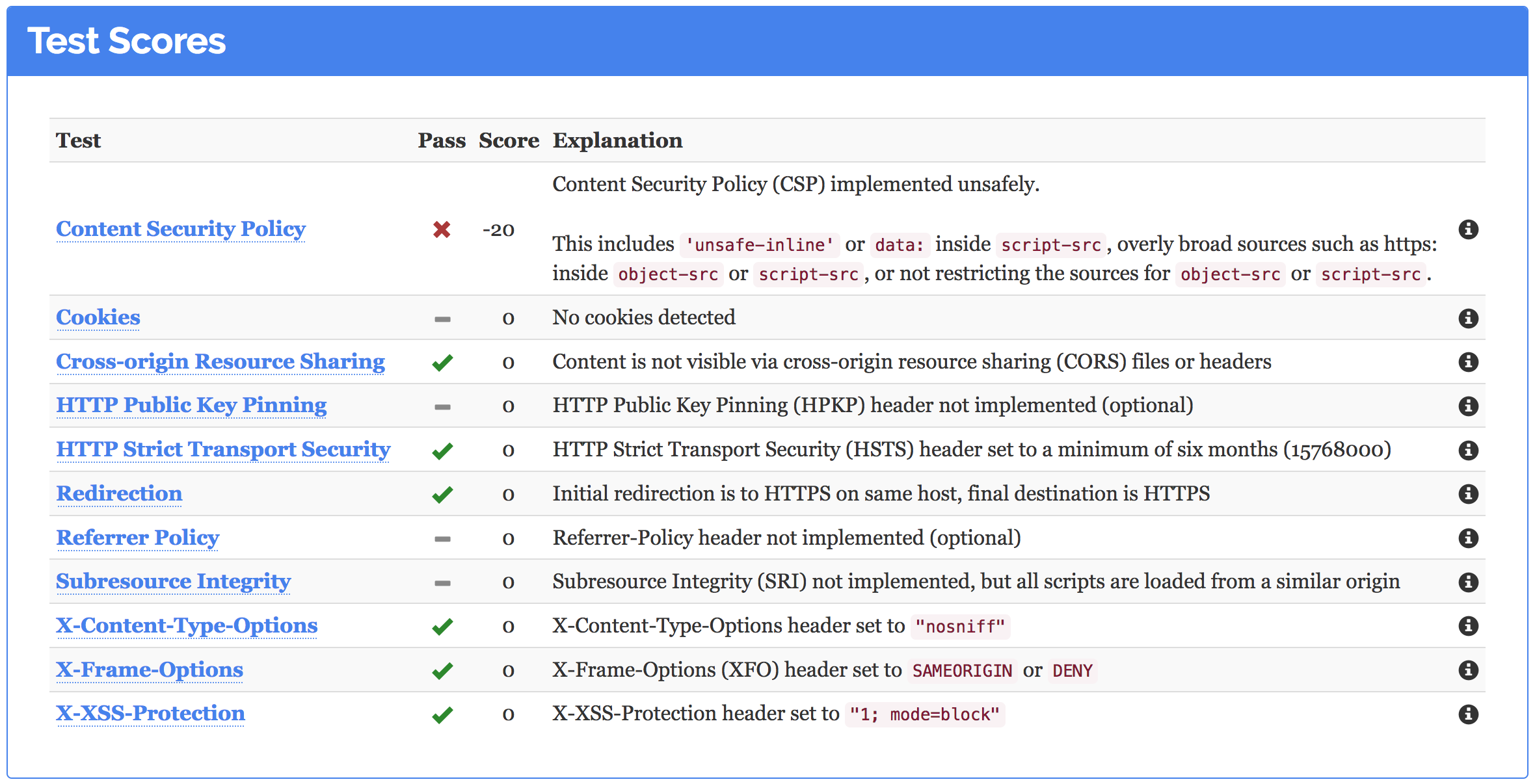

Mozilla Observatory (Tests)

Mozilla Observatory (CSP)

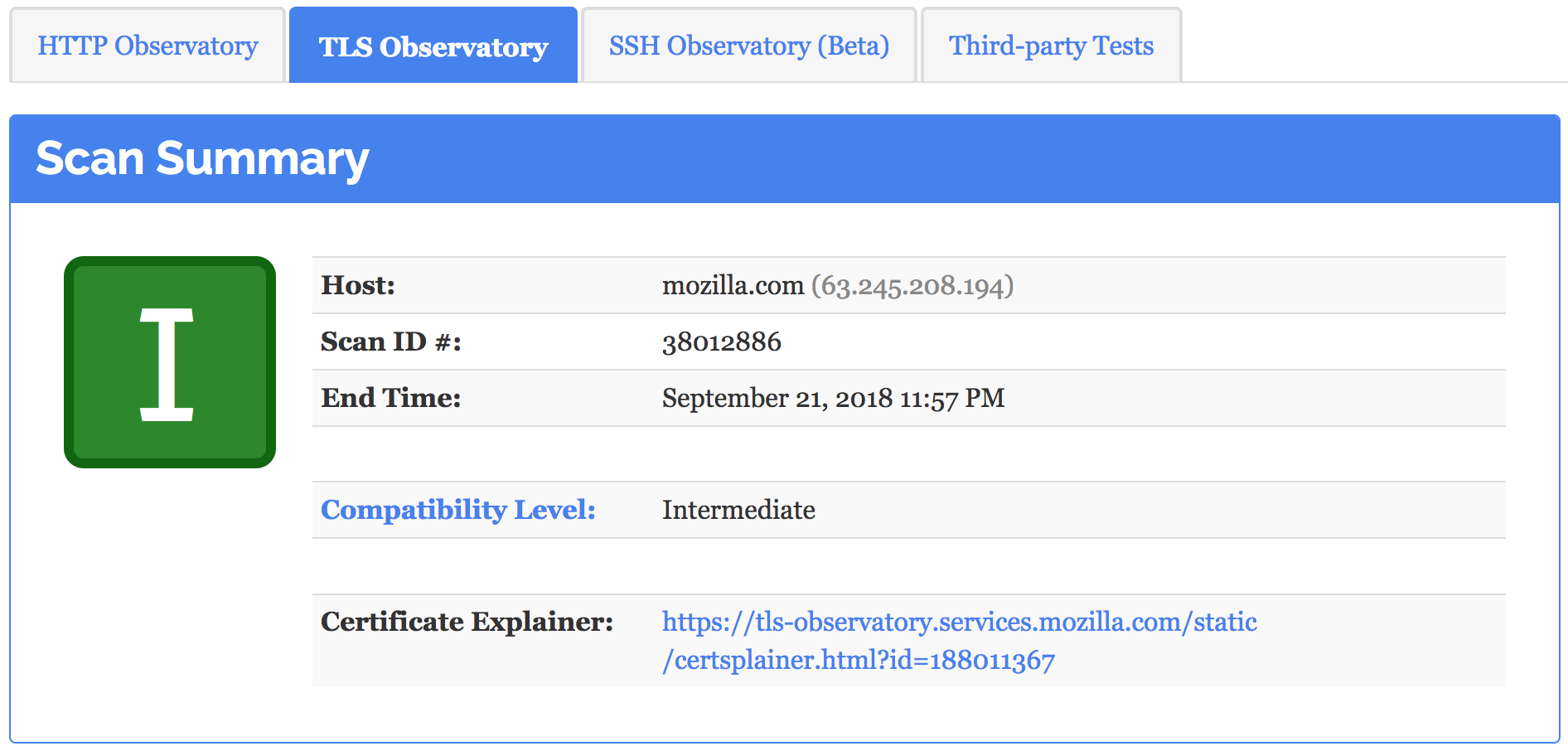

Mozilla Observatory (TLS)

• If you follow the Mozilla TLS guidelines, it can test compliance

Mozilla Observatory (the other cool stuff)

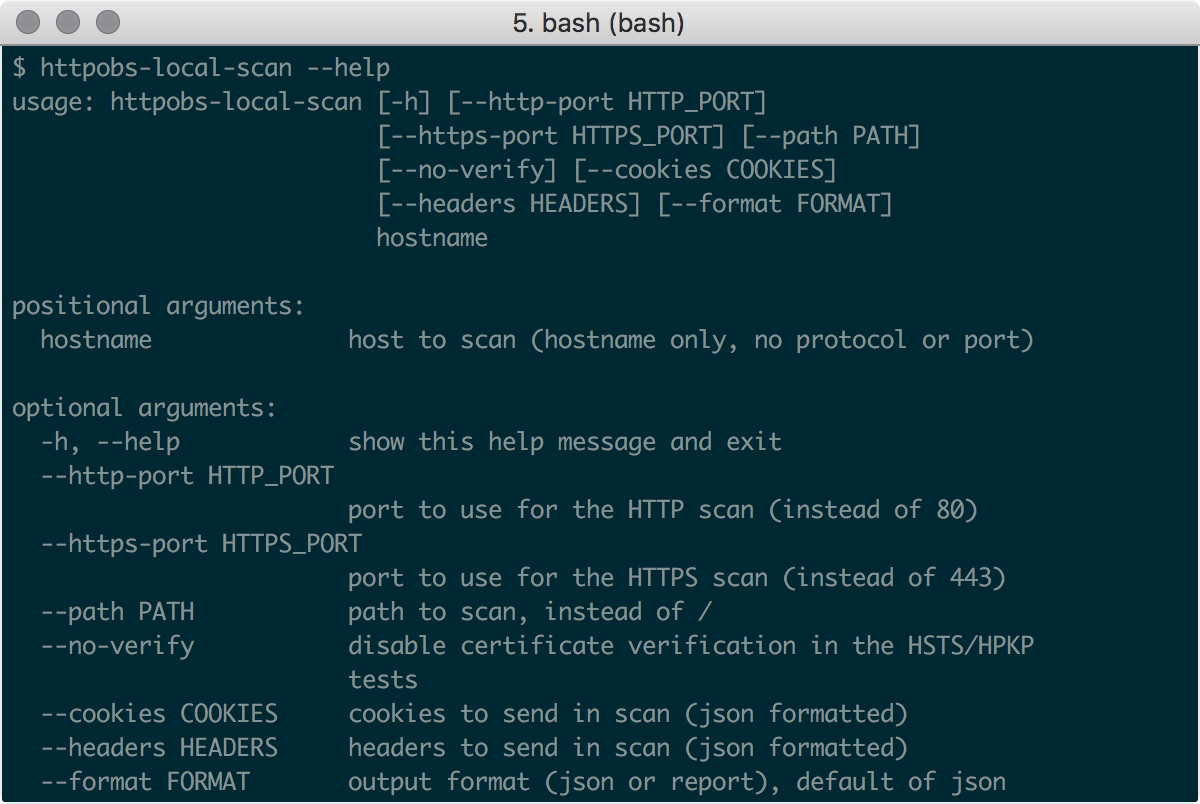

• Command-line clients, Python libraries
• Free public API, preconfigured system images for internal use
• Integration with 3rd parties, such as SSL Labs
• Please try it out at: observatory.mozilla.org
